System Description

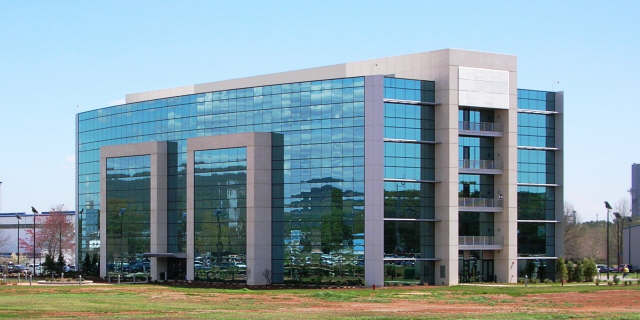

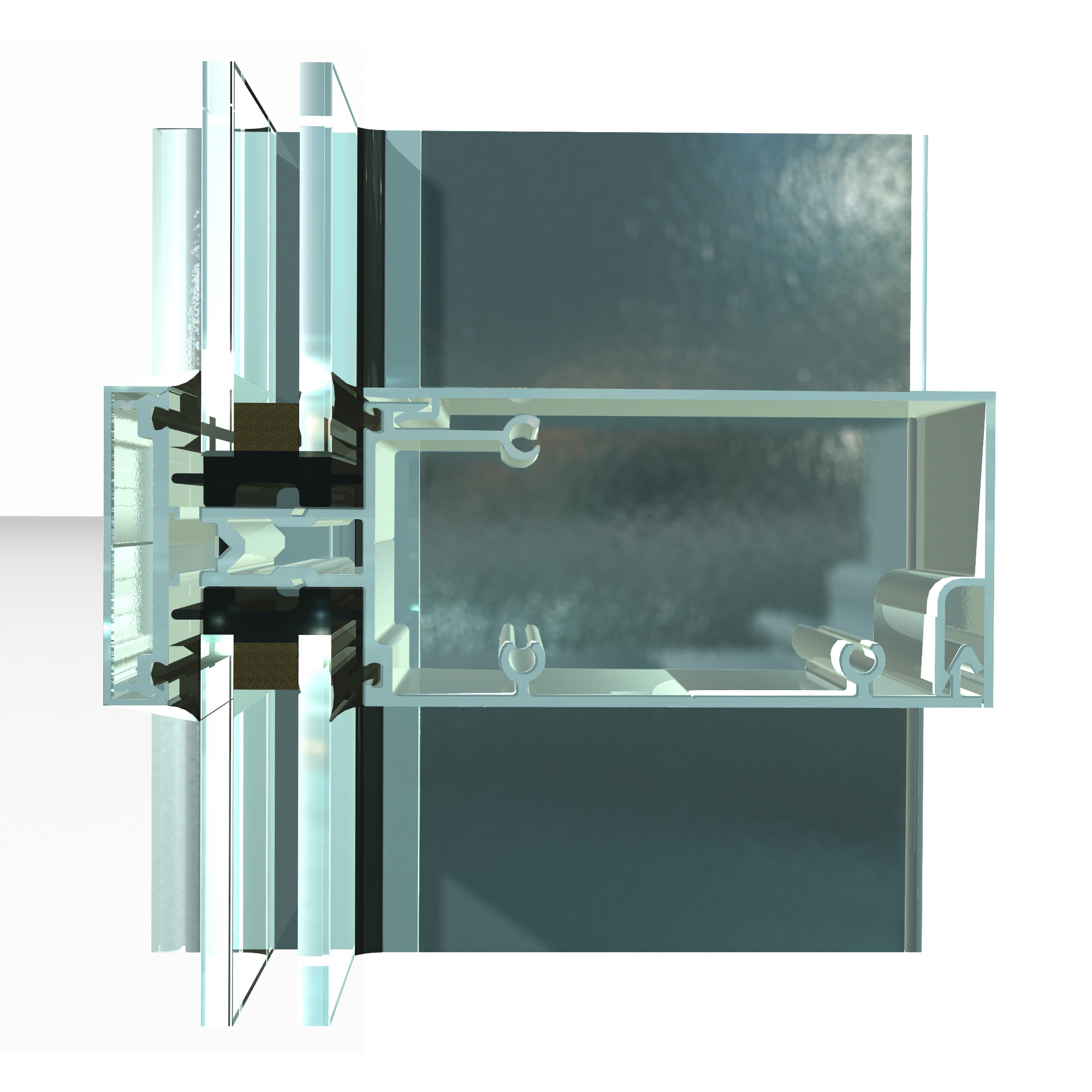

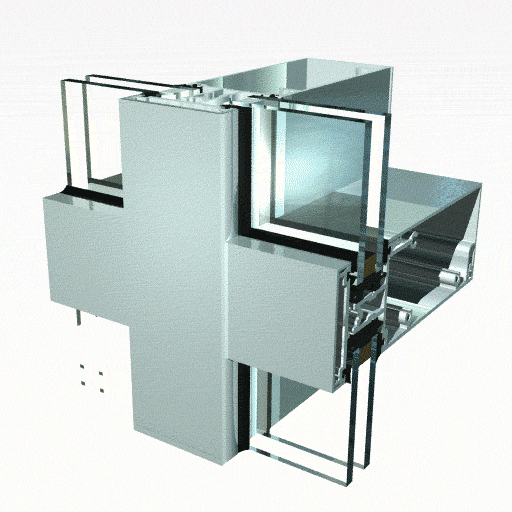

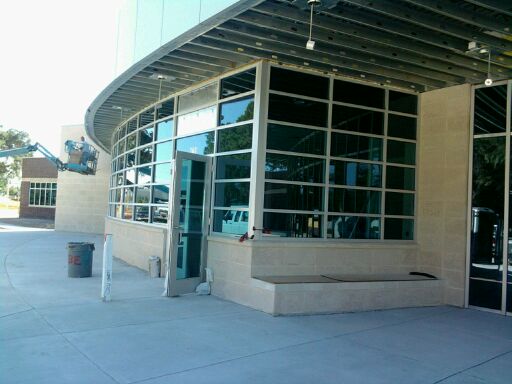

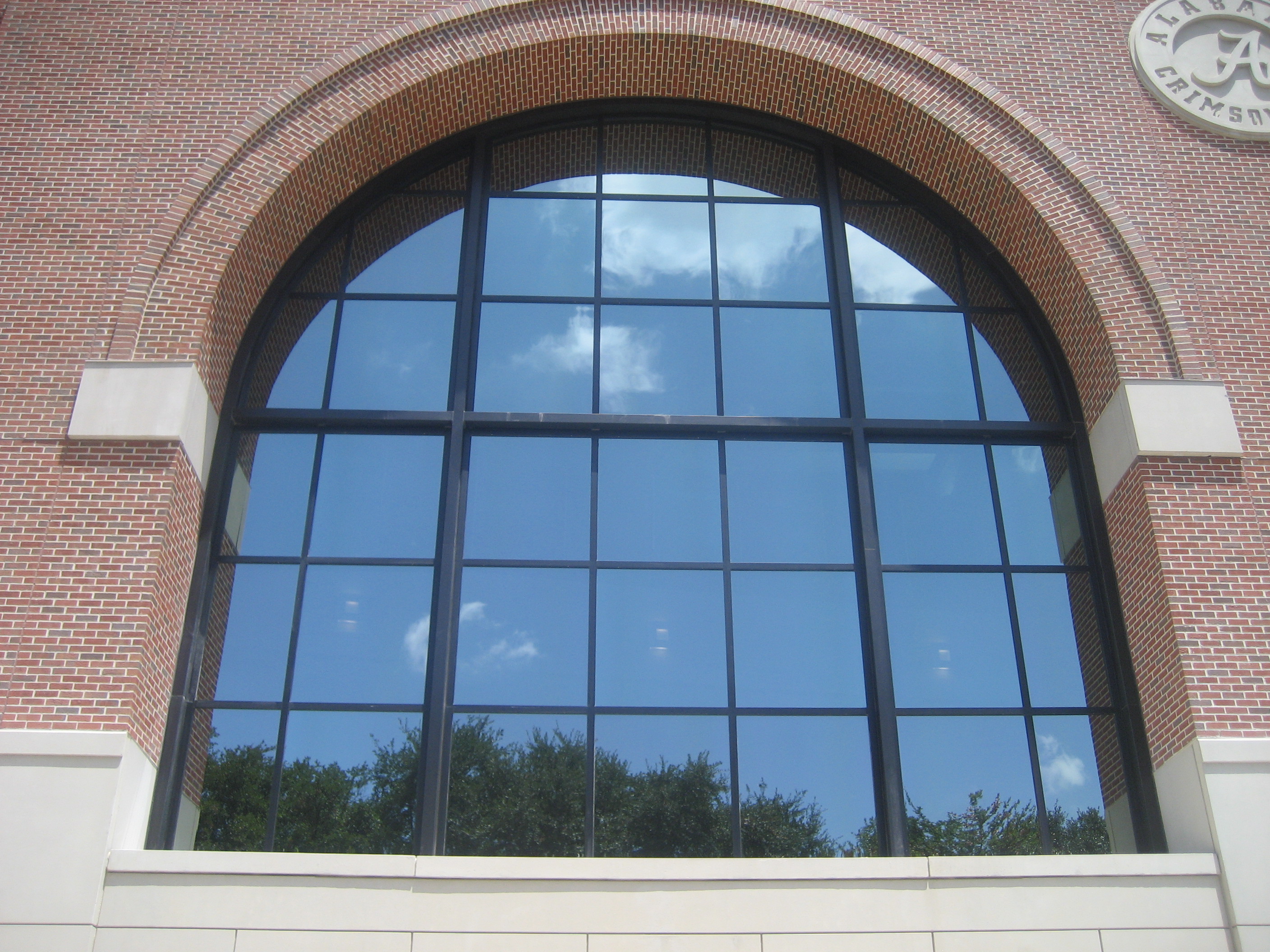

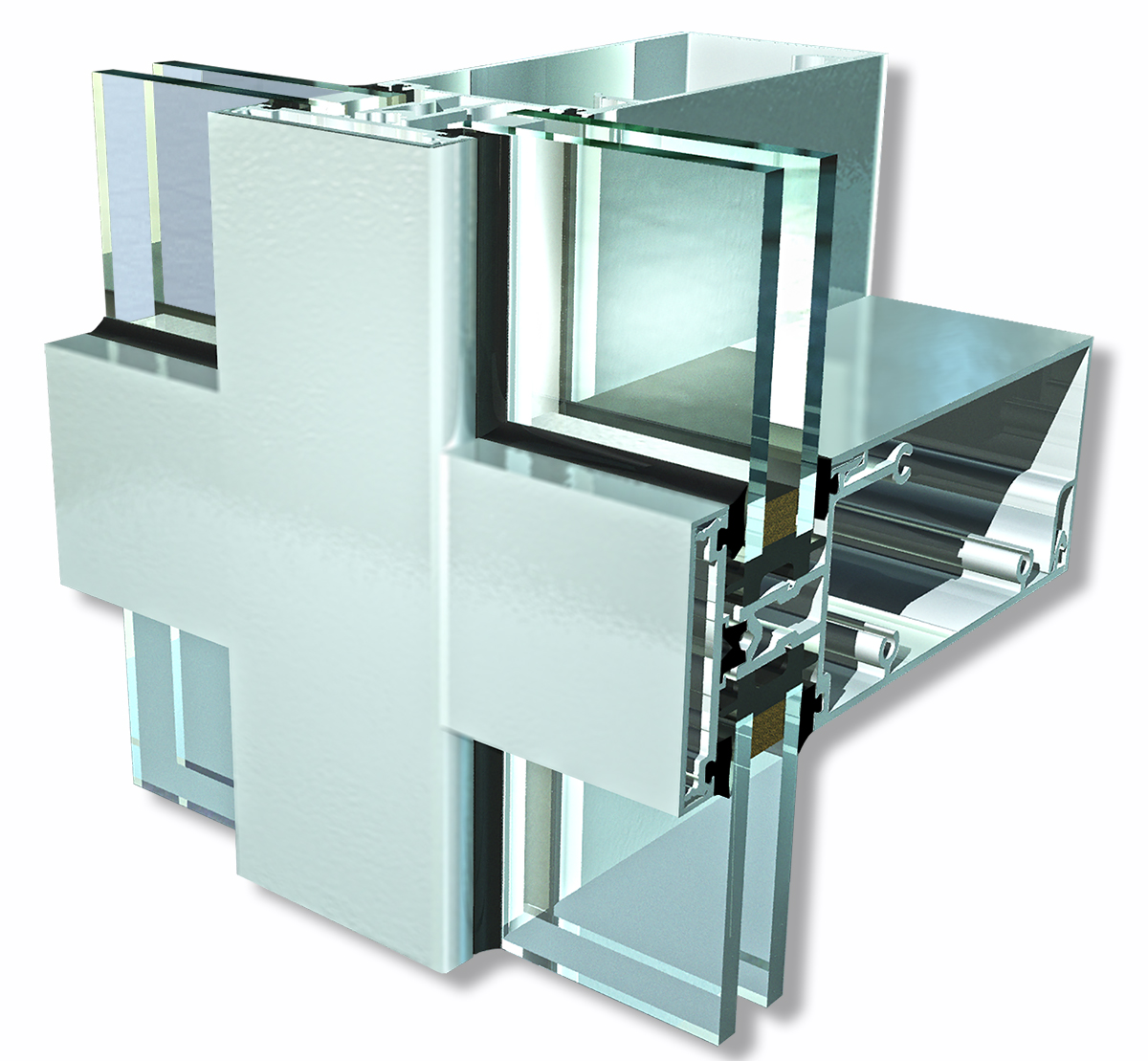

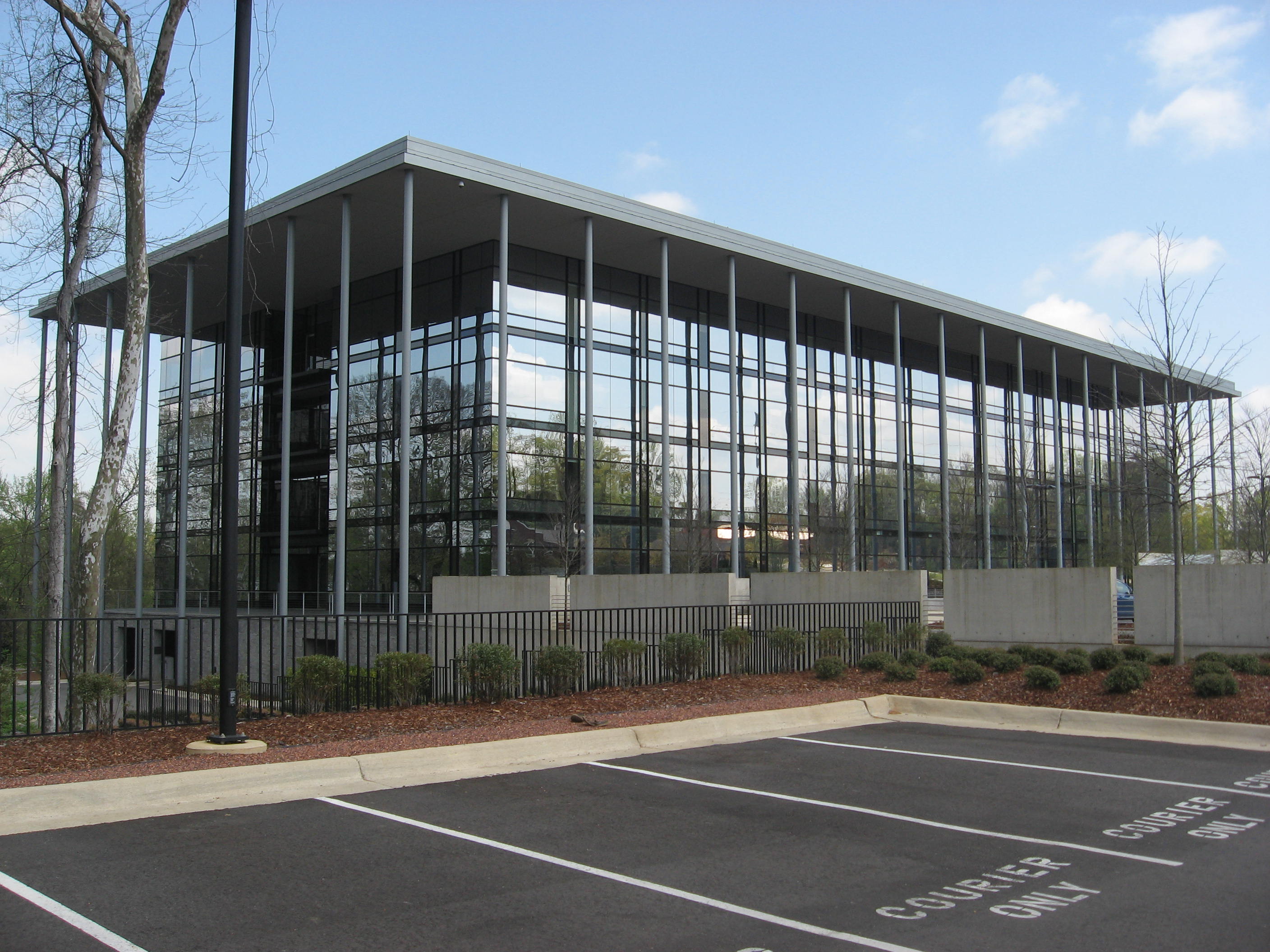

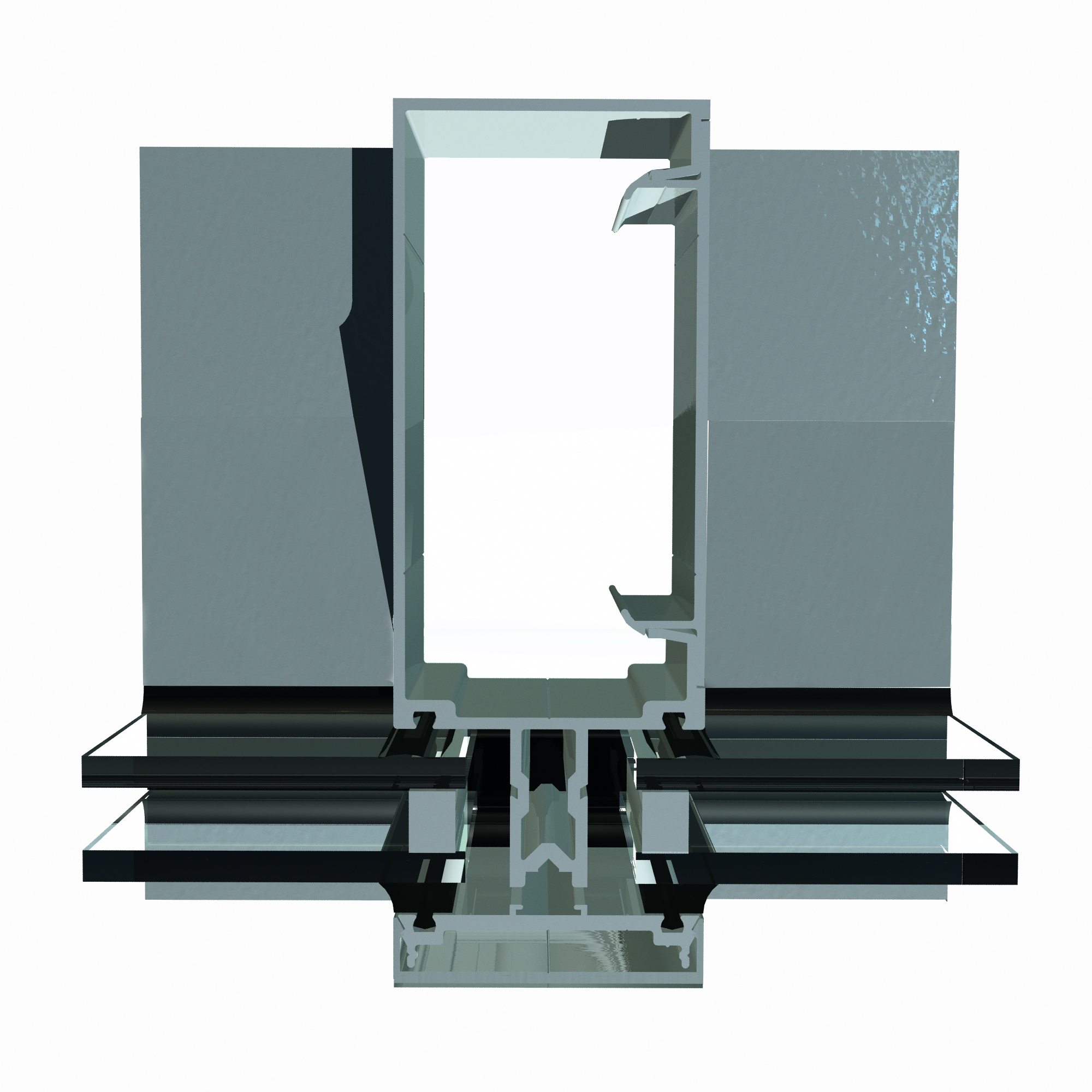

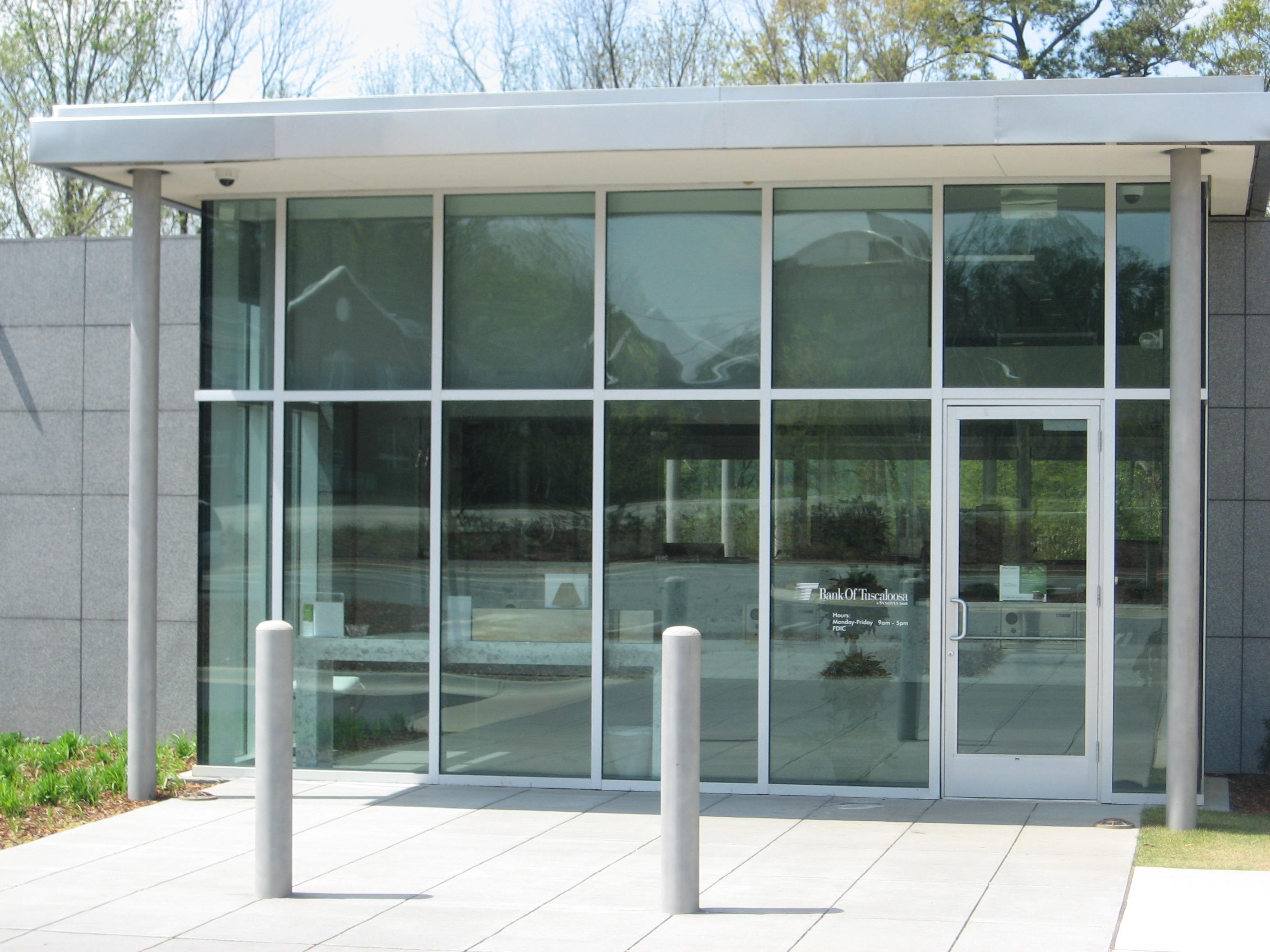

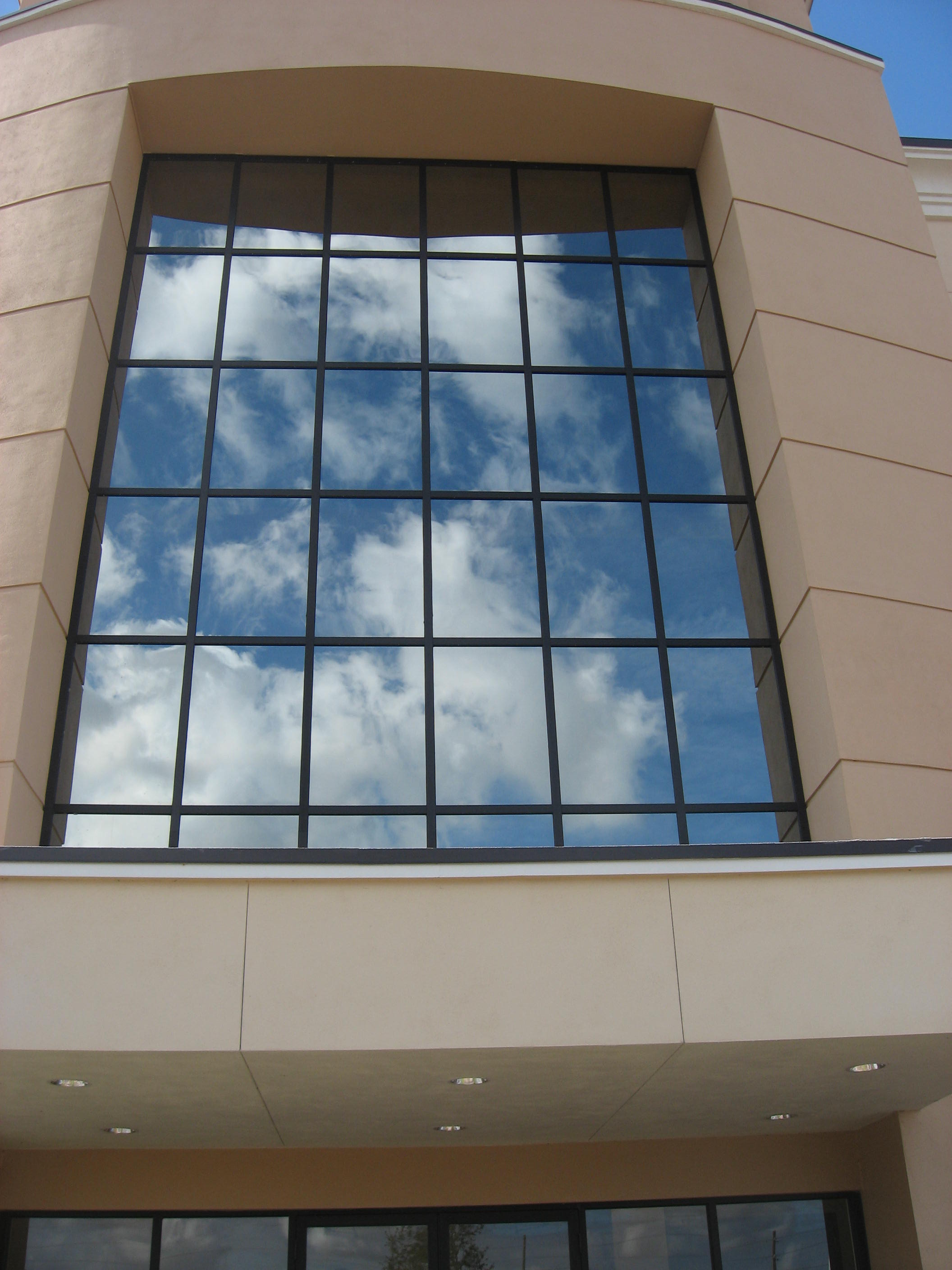

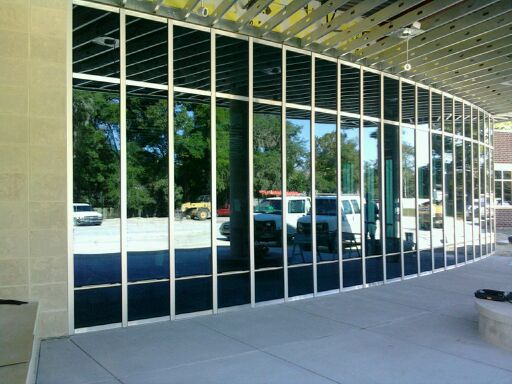

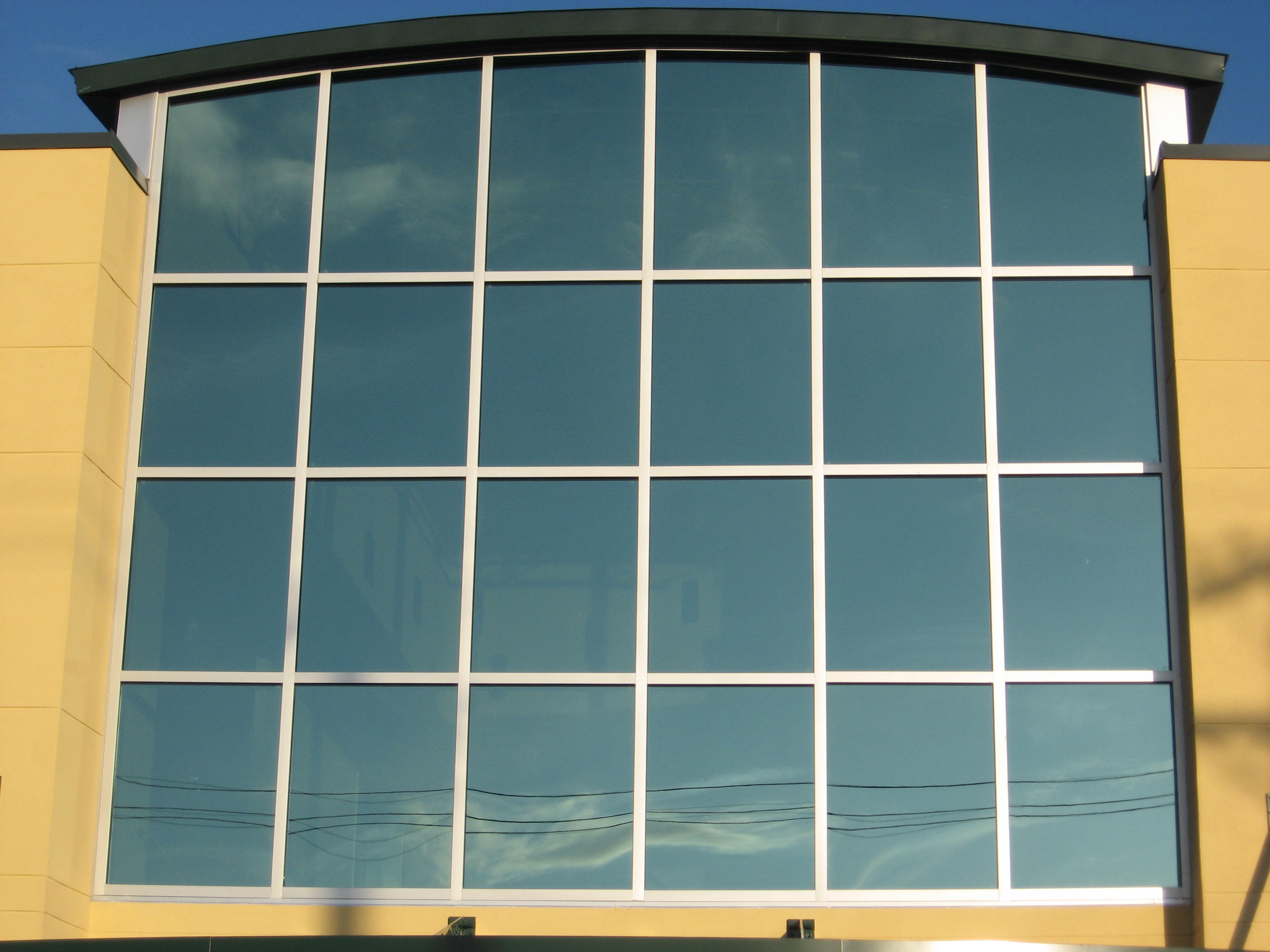

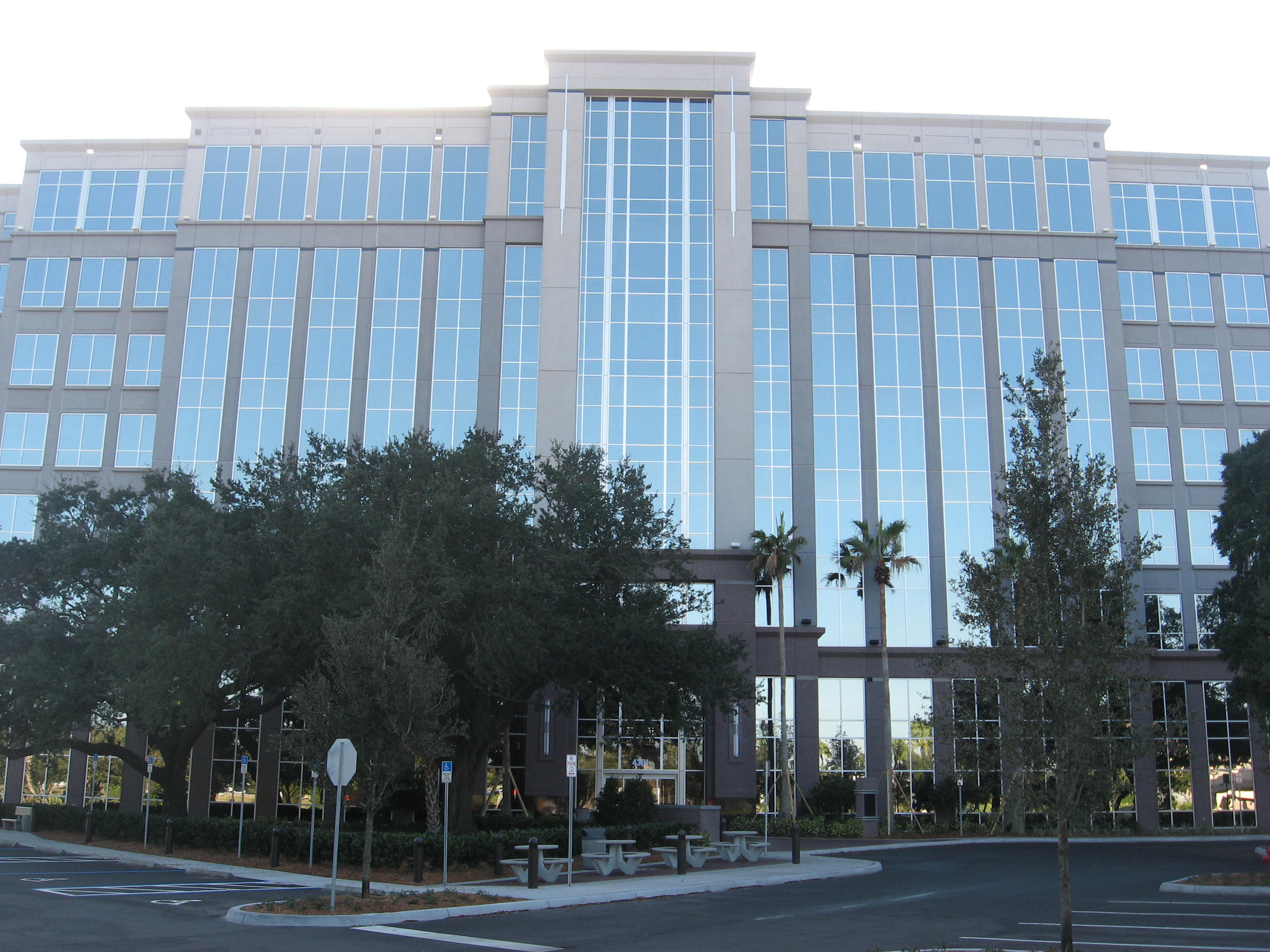

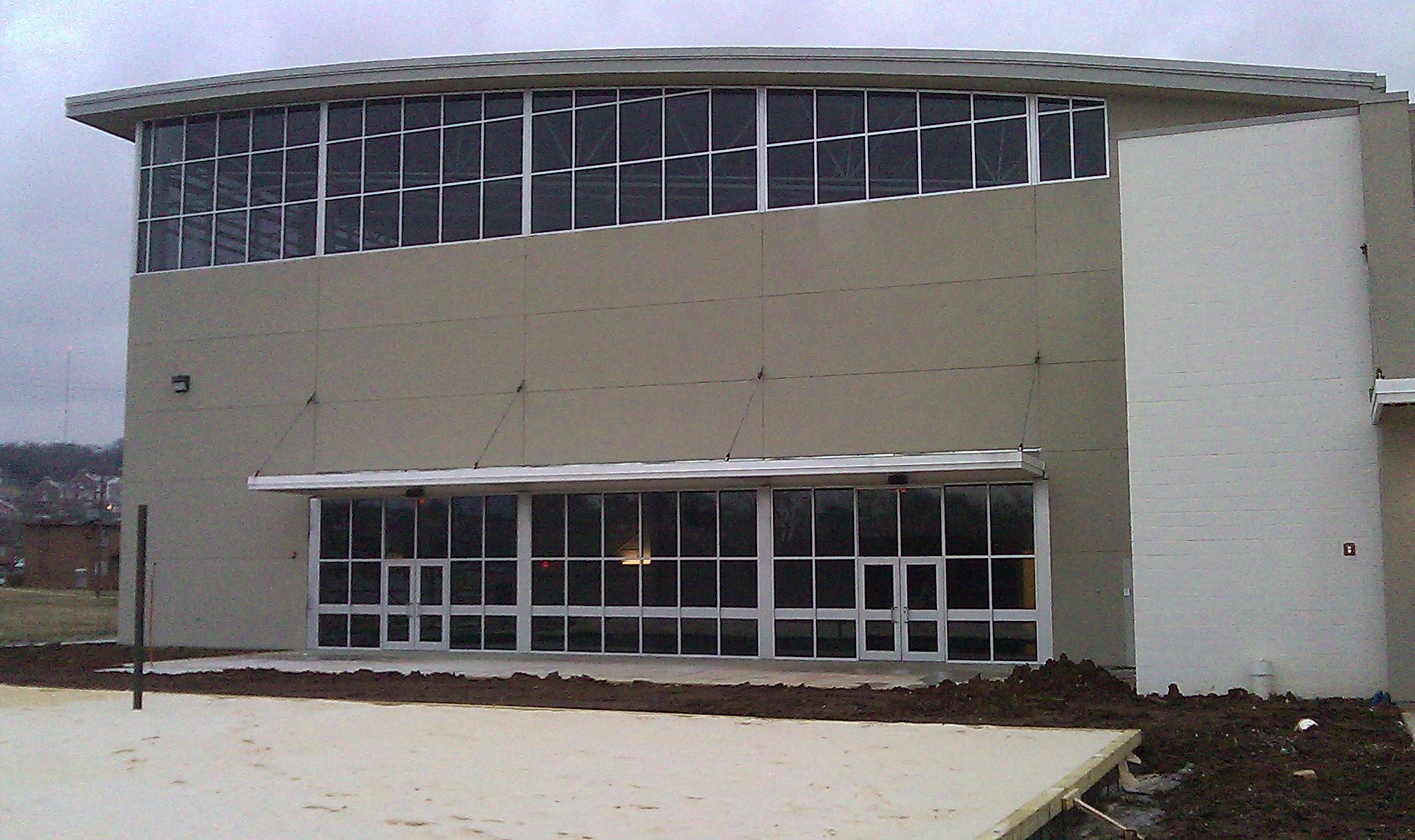

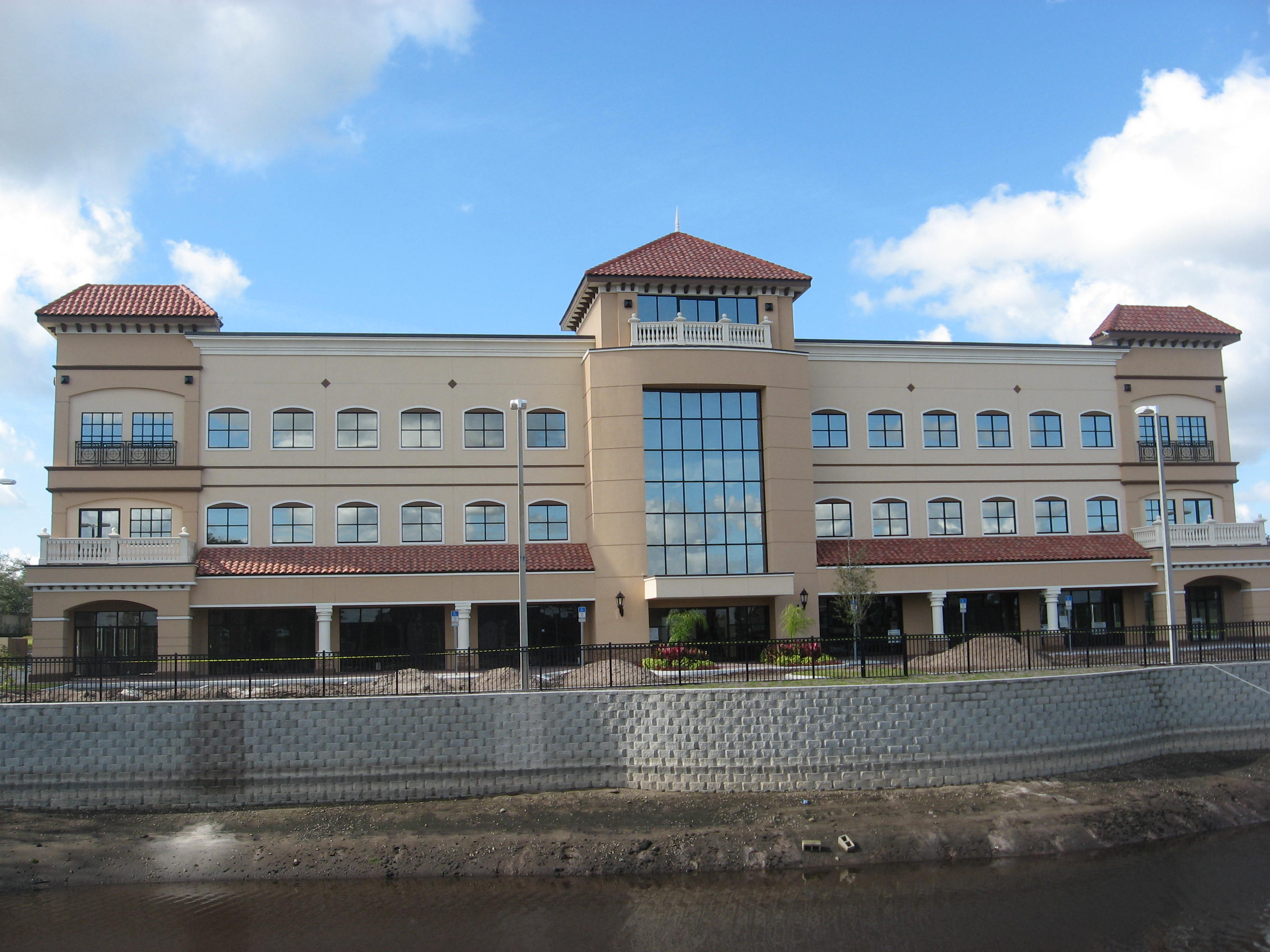

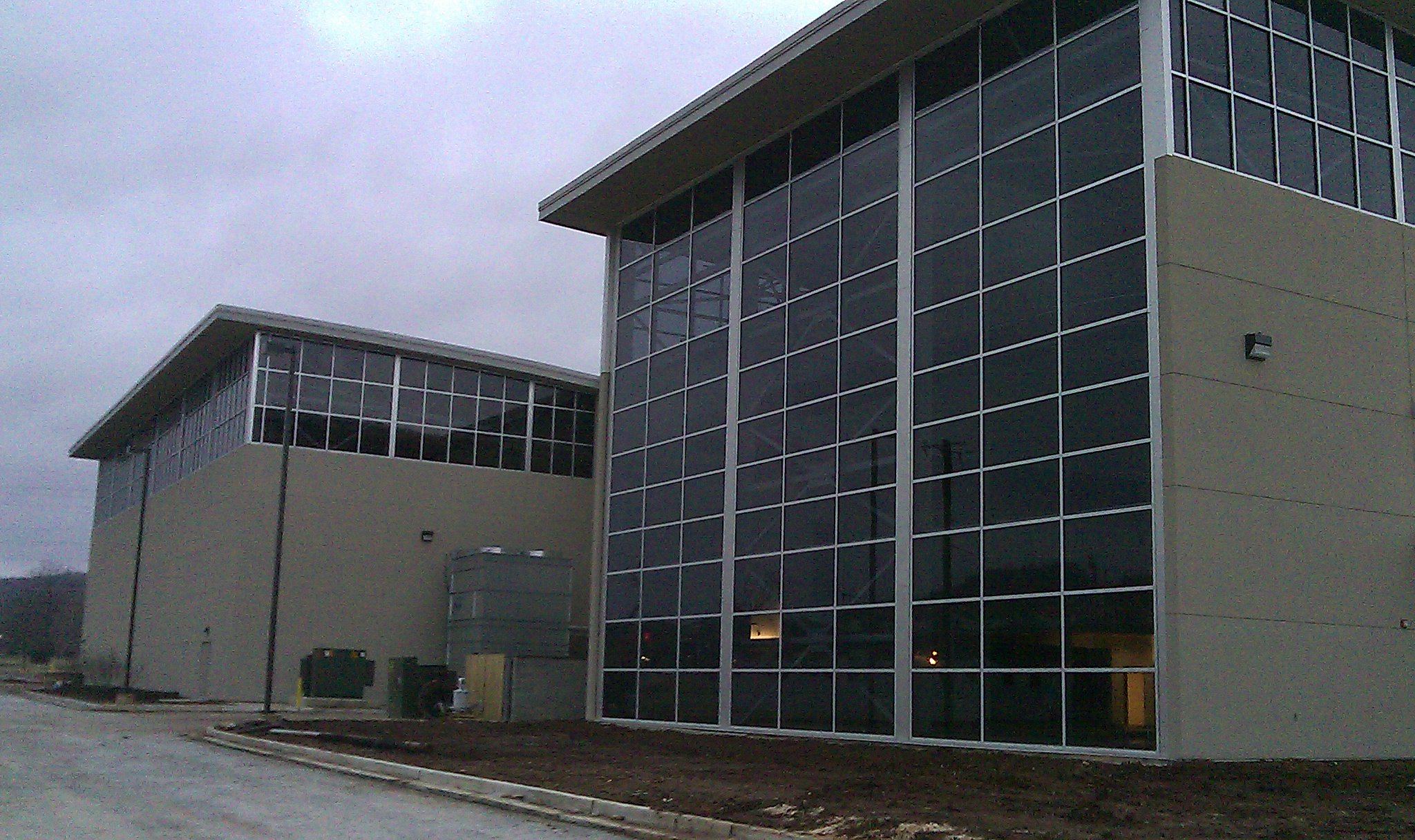

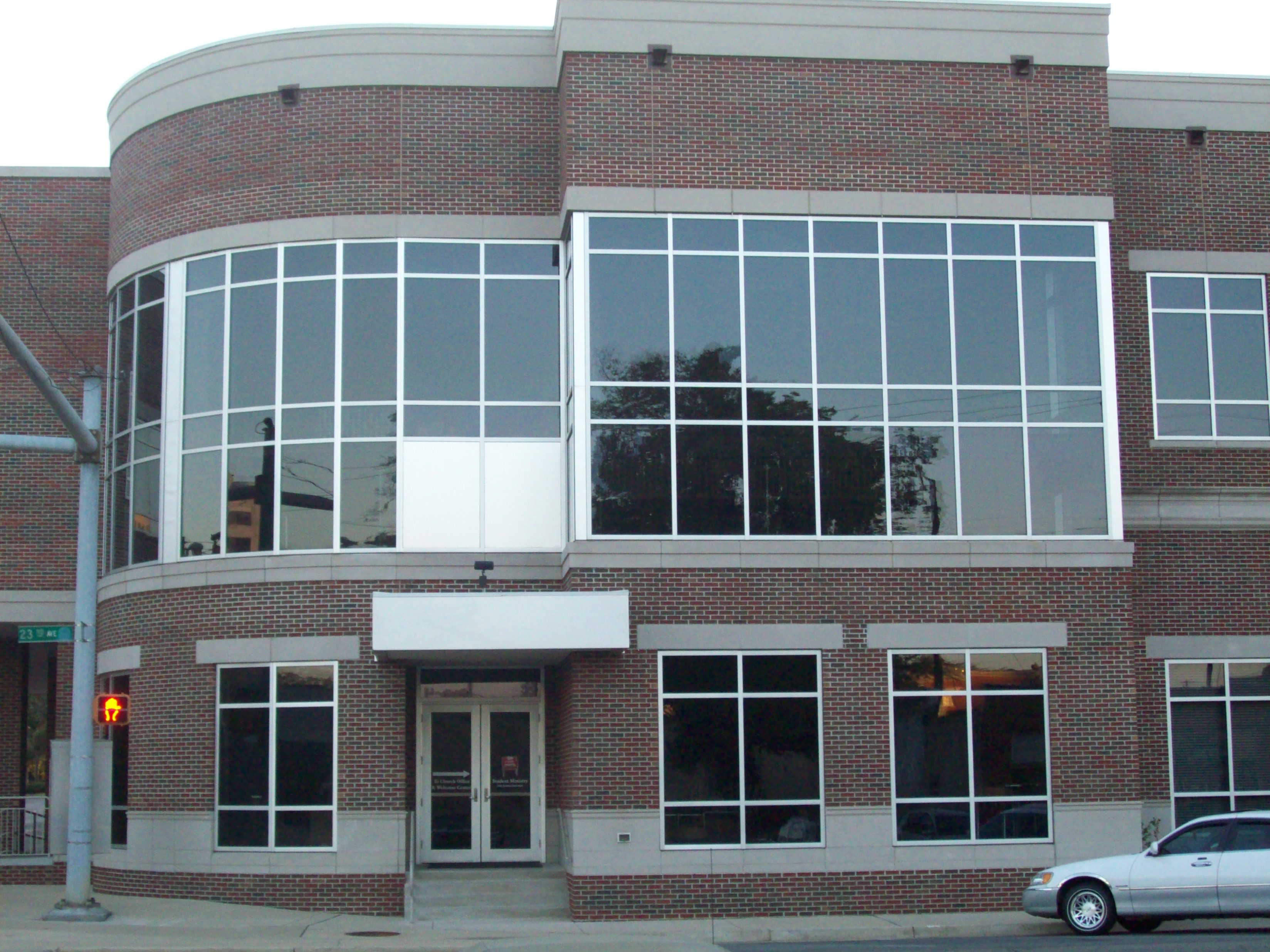

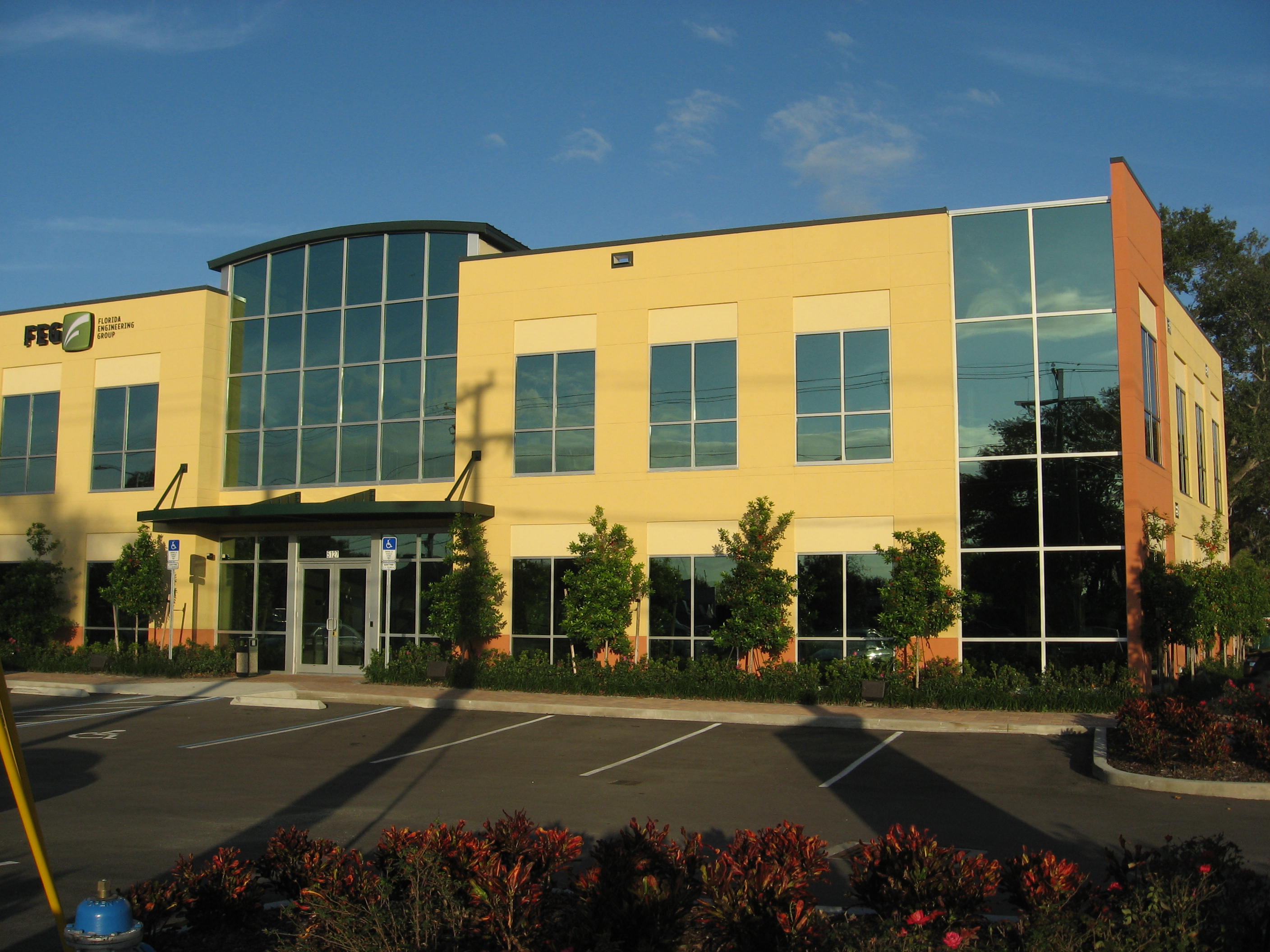

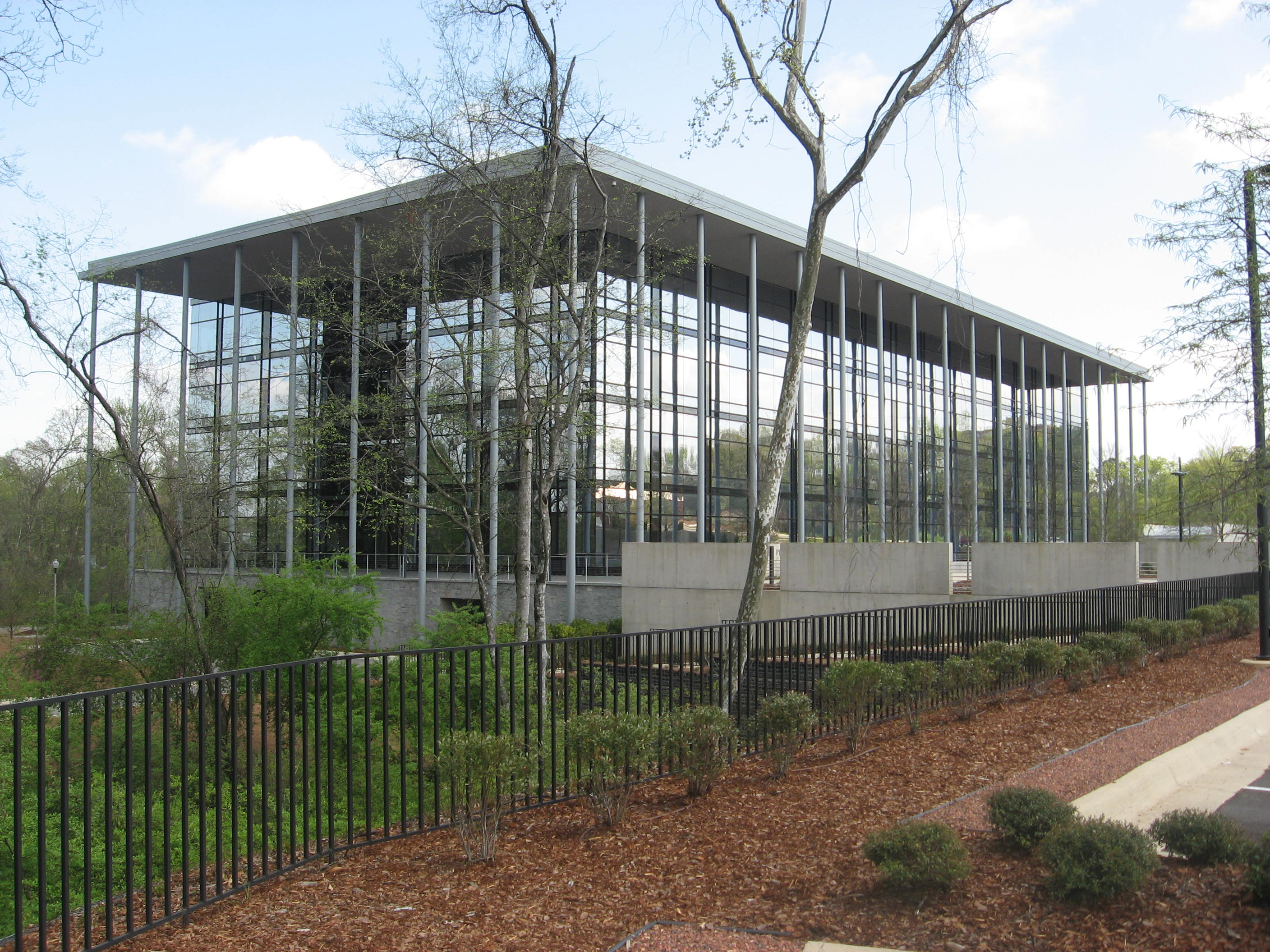

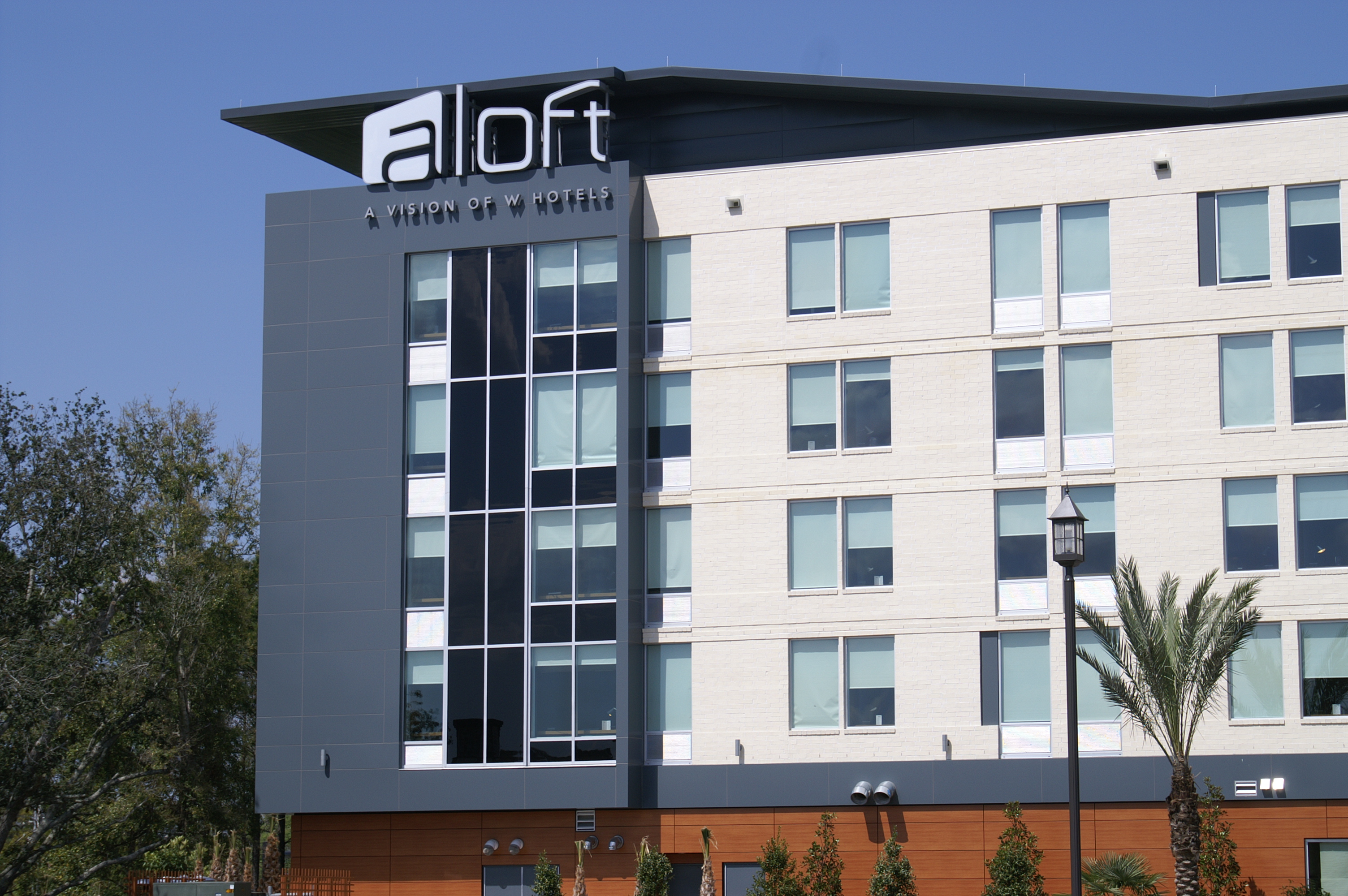

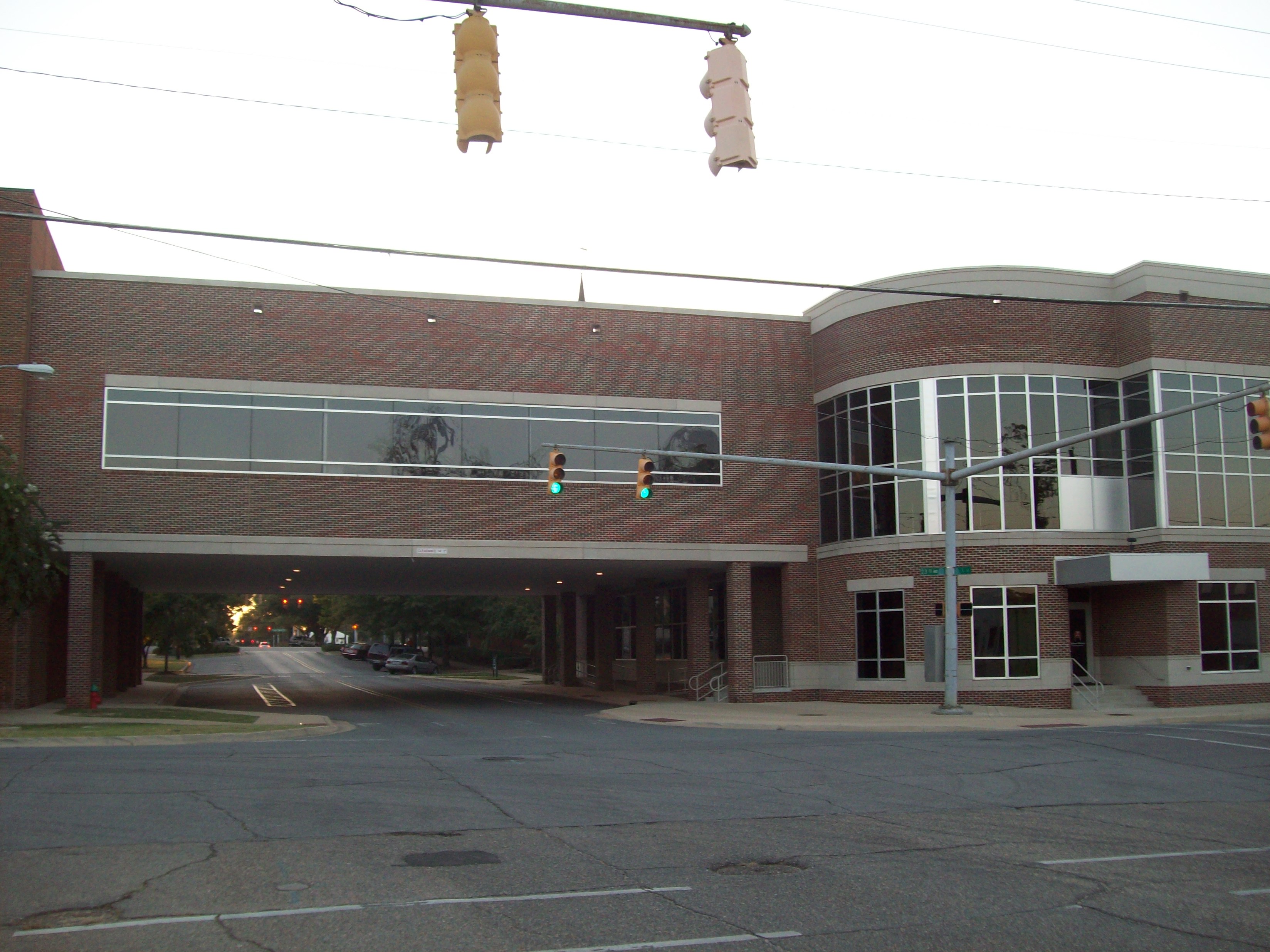

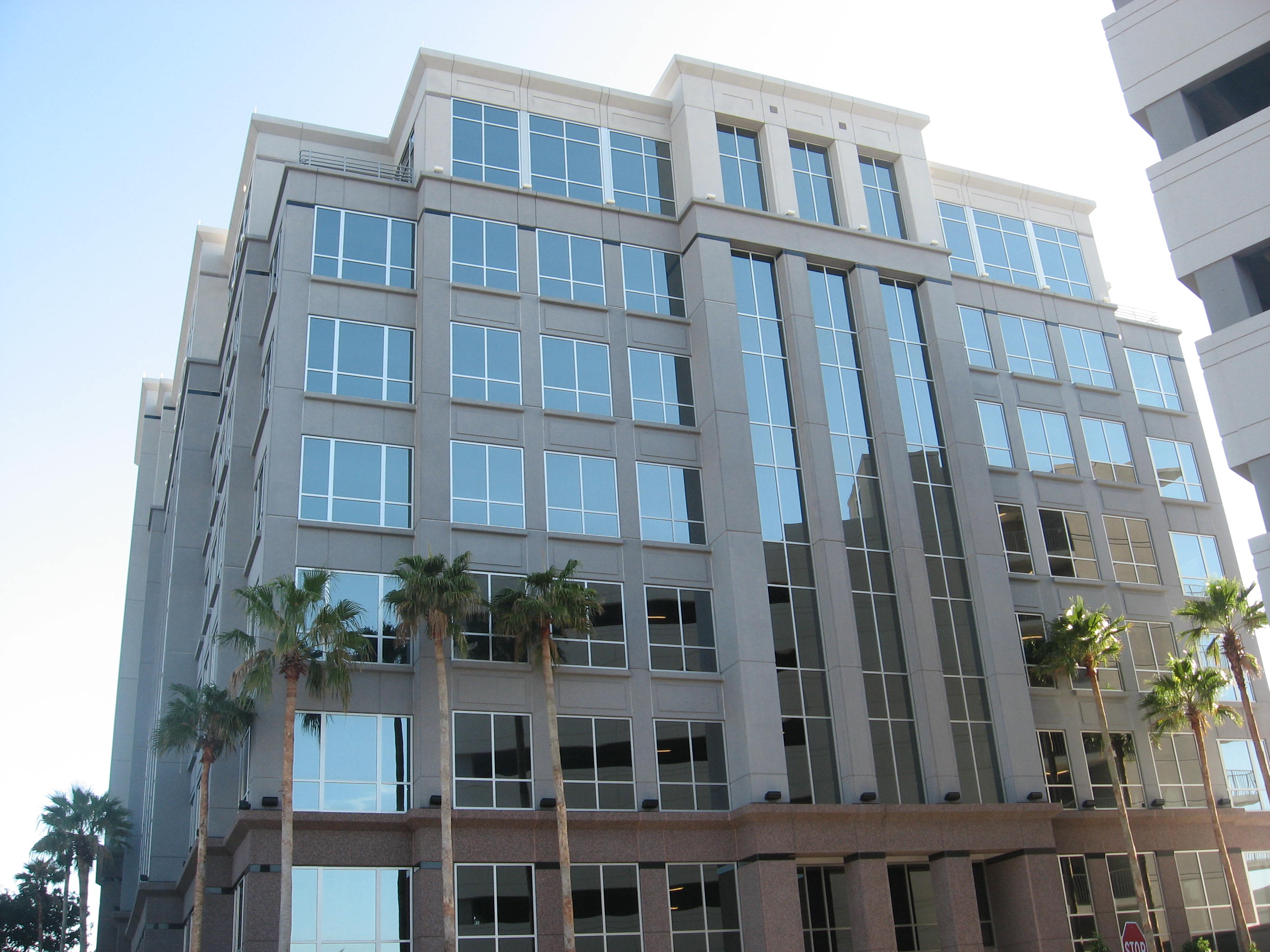

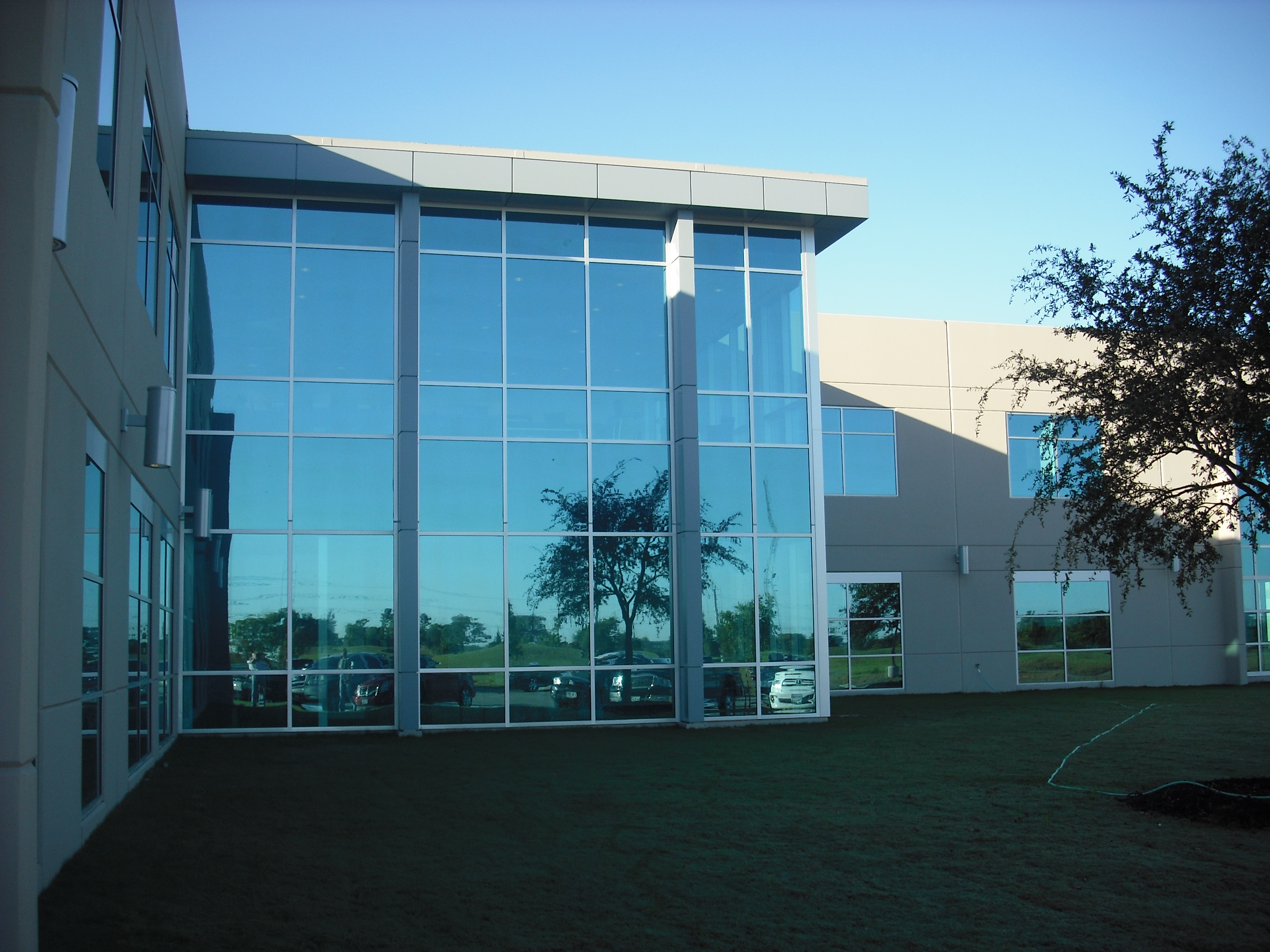

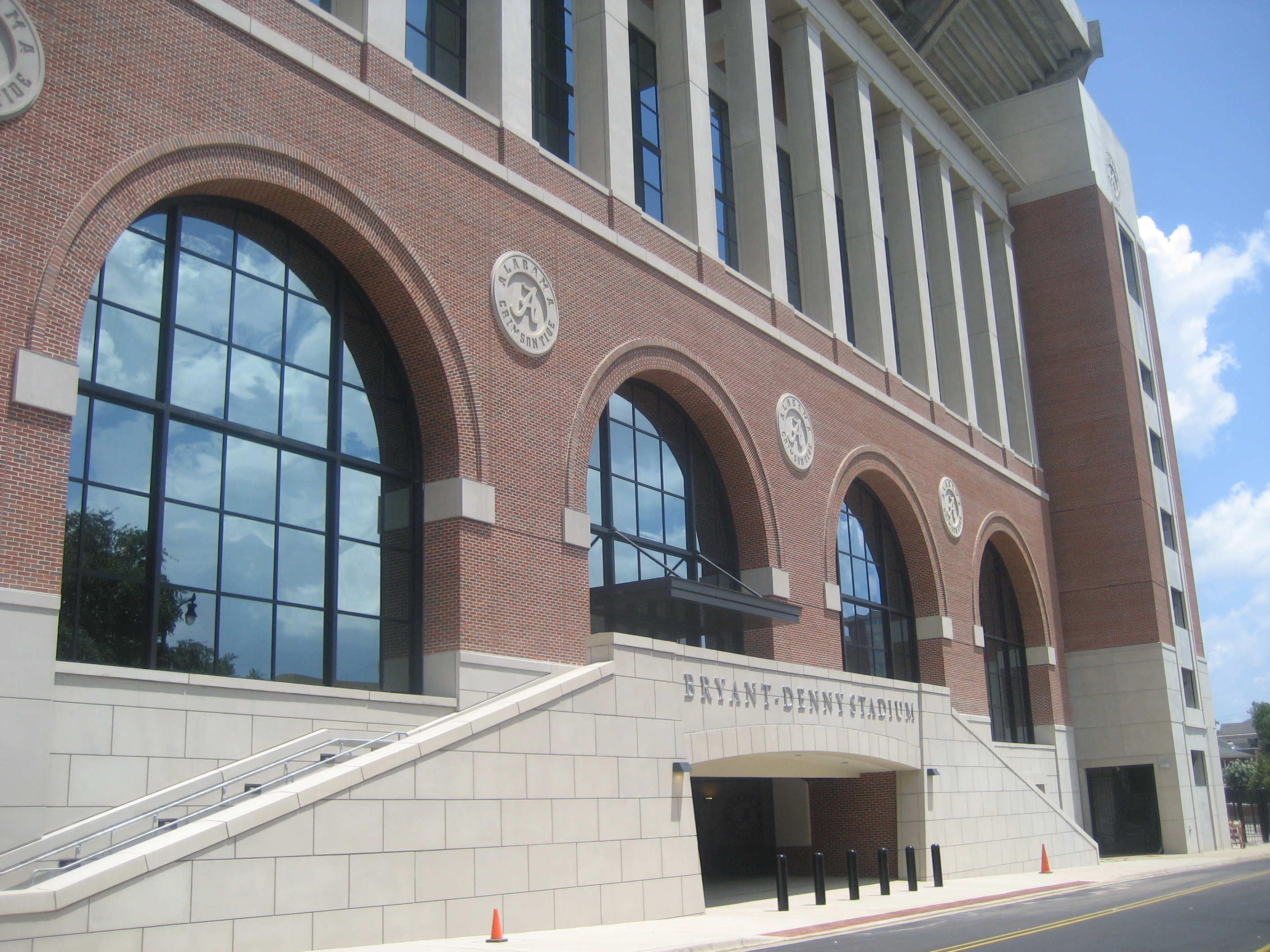

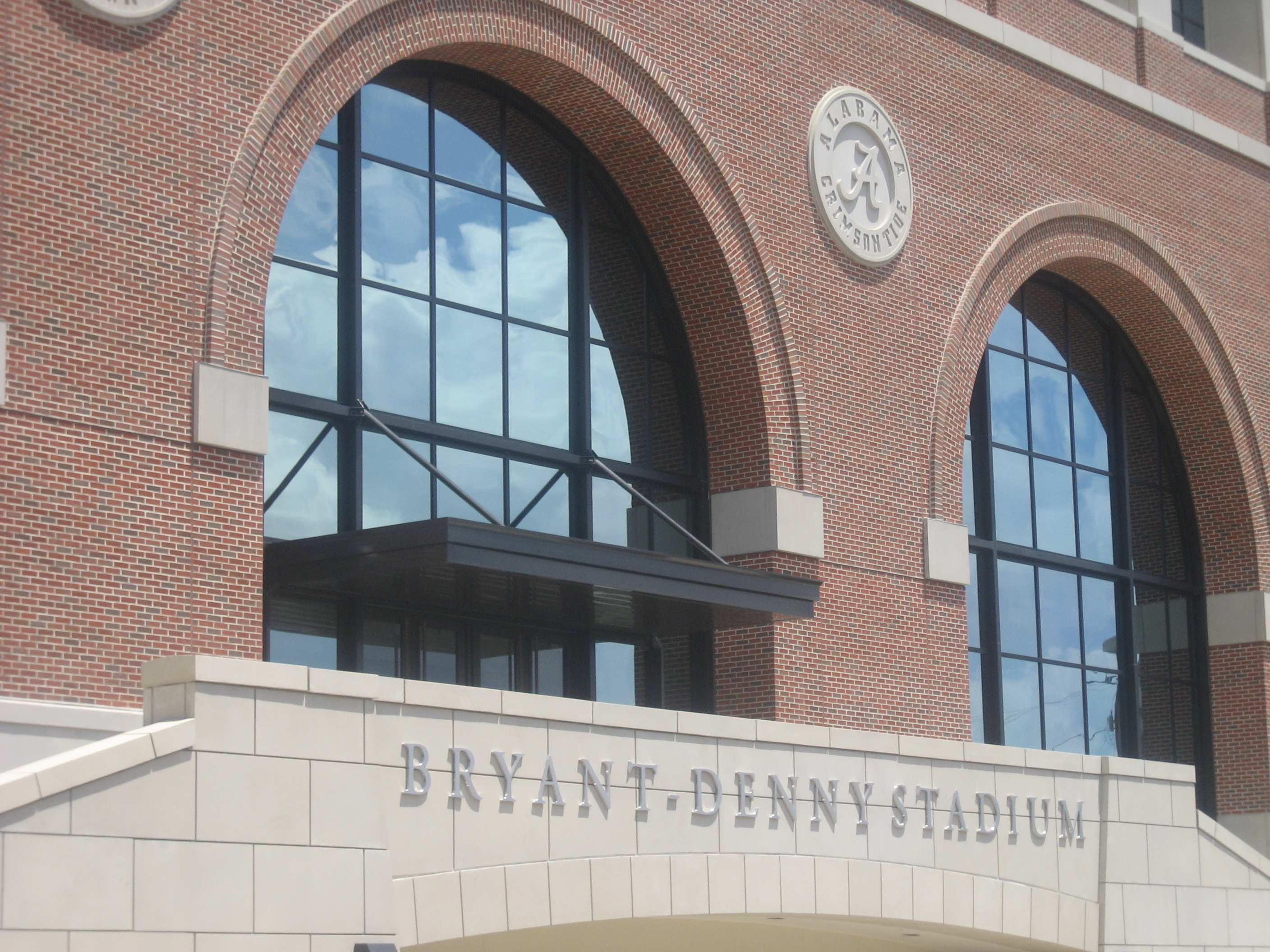

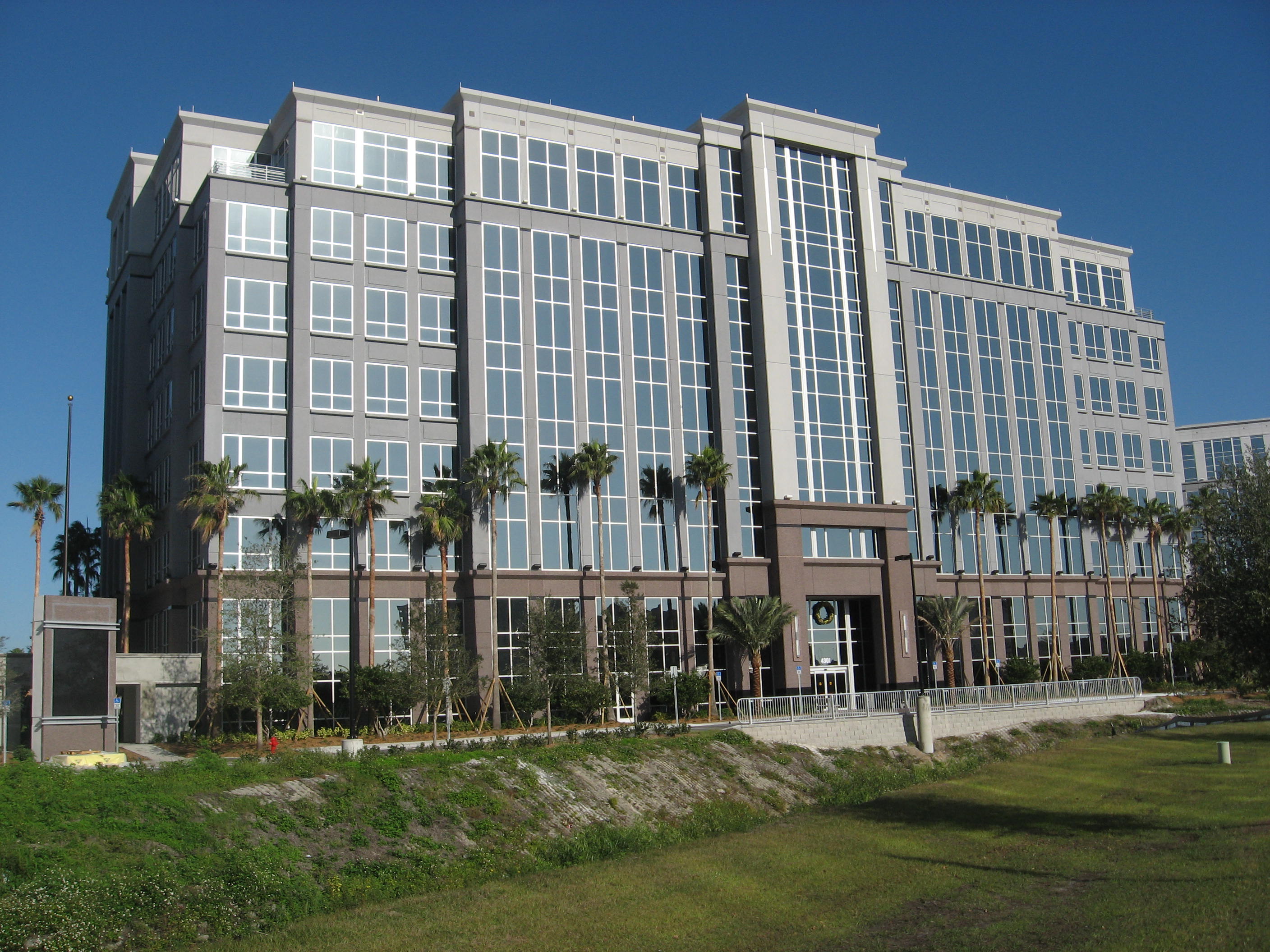

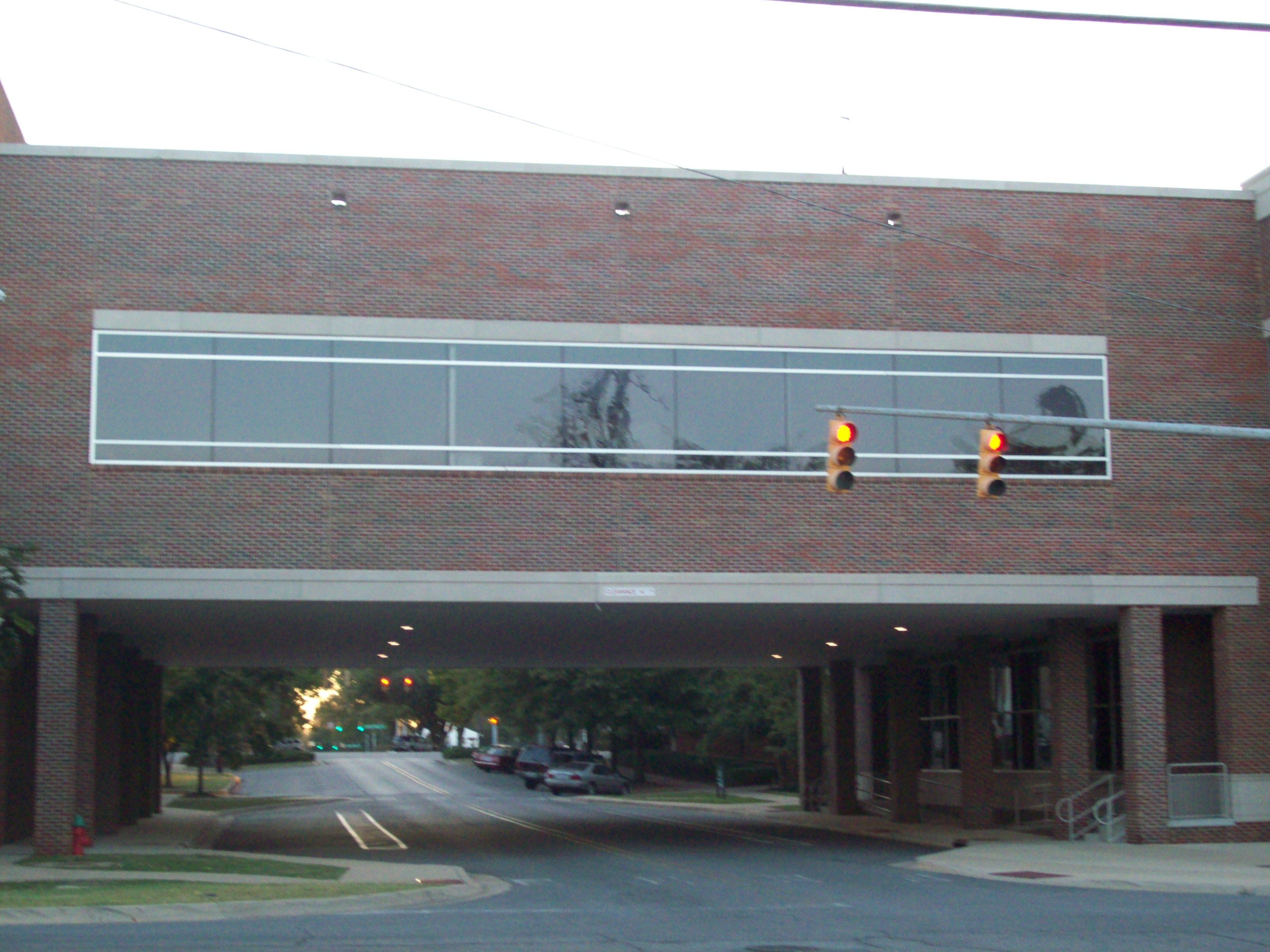

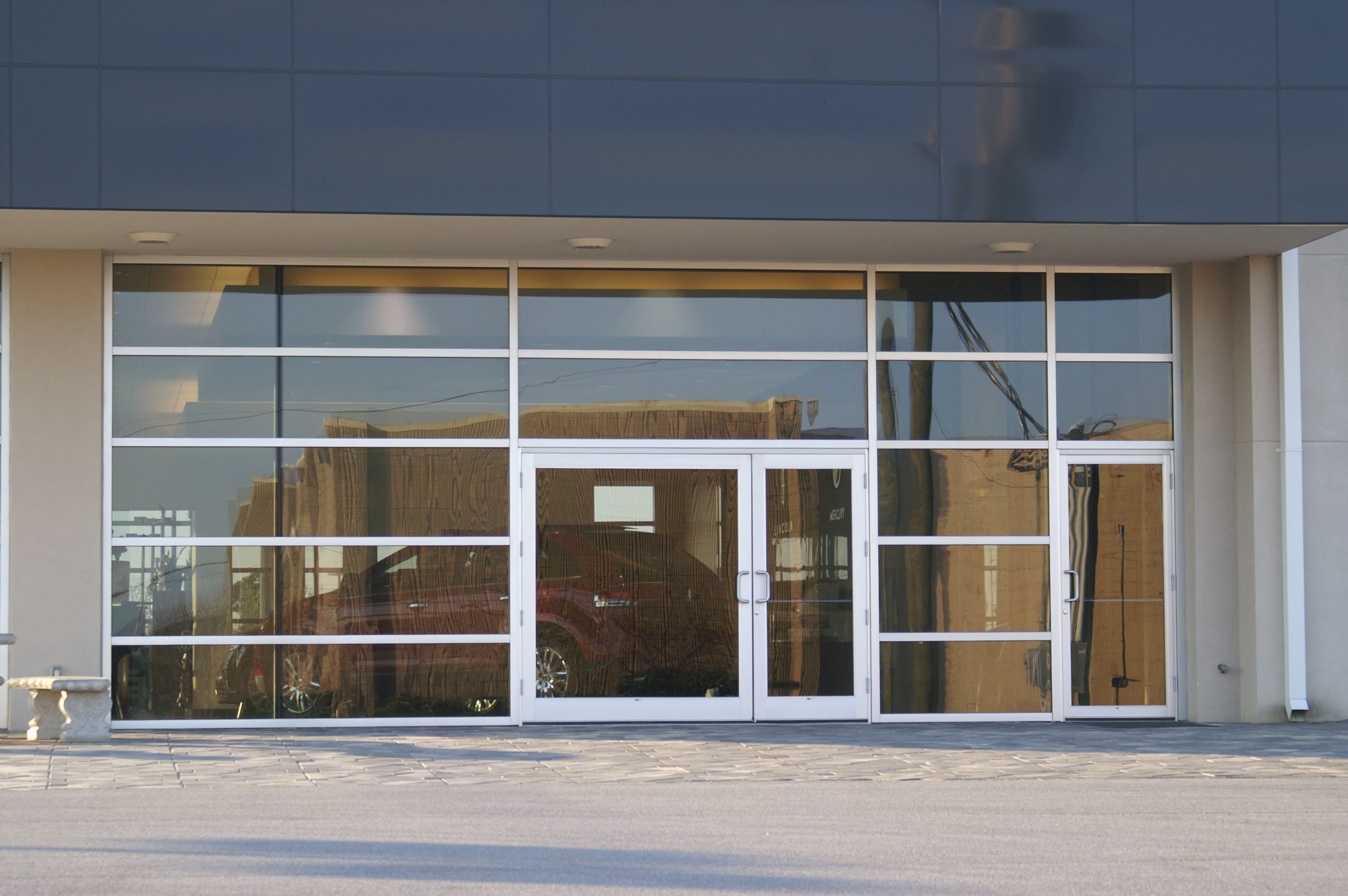

Series PW251 is a 2-1/2” X 7” is a screw-spline assembled pressure wall curtain wall system can accommodate 1” insulated glass for low-rise, multi-story and monumental applications. Snap-together profiles using integral screw-spilne joinery allows for the frames to be pre-assembled in panels resulting in increased productivity and quality control. PW251 options include fully captured and two-sided silicone structural glazed and 10” deep profiles are available.
Features
Glazing gaskets:
- Same EPDM dense gasket used on interior and exterior at glass
Screw spline joinery allows:
- CoraPunch Die shop fabrication
- Die set punches spline and pressure bar weep holes
- Panelized frame assembly for easy transporting and installation
Pressure Bars:
- Preloaded with a dense EPDM thermal isolator at factorywith attachment holes pre-punched 9” O.C.
- Attached to back members with #12-14 x 1-1/4” HWH #3 self-drilling fasteners
- Panelized frame assembly for easy transporting and installation
Removable snap-on interior trim covers at all horizontals allows:
- Anchor inspection to substrate after glazing
- Inspection and/or repair of critical joint seal areas after glazing
Injection molded plastic end dams and bridges:
- Accurate and tight seals at intersection of vertical/horizontal joints
- Zone glazed system with weep holes in pressure bar for water control
Injection molded plastic top and bottom vertical mullion caps:
- Accurate compression fit
- Provides continuous perimeter seal
Injection molded plastic temporary glazing retainer:
- Reduces labor
- Distributes uniform pressure on glass reducing risk of breaking glass
- Reusable for next project
Performance Test Standards
- ASTM E 283 – Air Infiltration Test
- ASTM E 331 – Water Infiltration Test
- ASTM E 330 – Uniform Load Deflection and Structural Test
- AAMA 1503-09 / NFRC 102-2010 Thermal Transmittance Performance
- Florida Product Approval Number – FL8379 (non-impact for use outside HVHZ)
